Punch Machine




Punching Machine


Brief Introduction

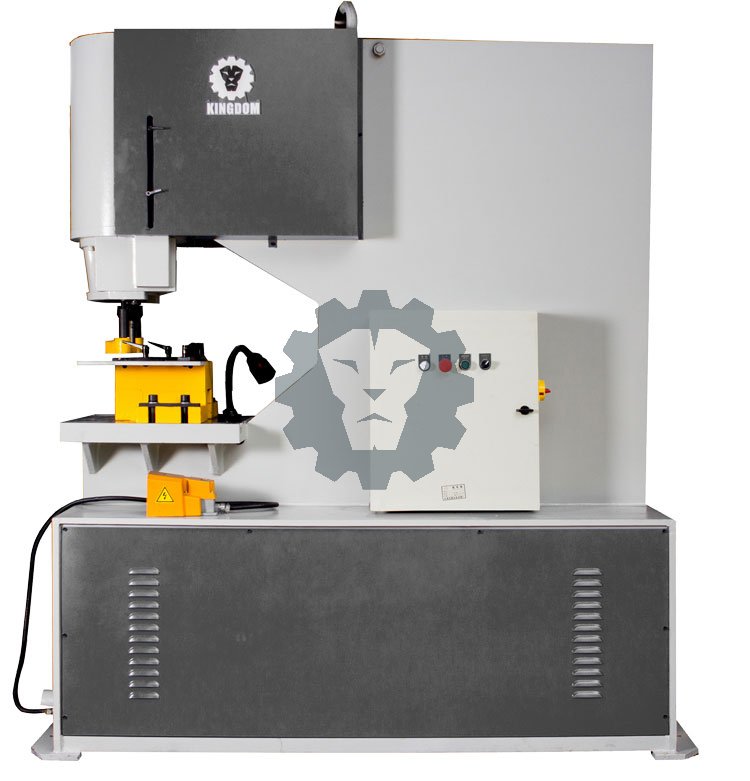

KINGDOM’s Q35YC series industrial grade hydraulic punching machine featuring multiple functions, including: round hole, square hole, oblong hole punching, louver punching; steel plate bending; angle bending and pipe notching.

The machine comes standard with: quick change coupling nut & sleeve, gauging table with stops, punching base table, safety guards and more. It’s the first choice for
metal processing of modern manufacturing industries (such as the metallurgy, bridge, and communication, electric power, military and other industries).

Our machine is designed via the latest technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.

Function

Hydraulic steel sheet metal plate punching machine, punching, punch press machine are widely used in electronics, communications, computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles) metal parts stamping and forming.


Specifications

Unit: mm
Gross Weight and Packing Dimension depend on customers' needs.
Based on material strength of 45kg/mm2 tensile.
Design and specifications subject to change without notice.

Main Features

1. Steel welds with high precision strength and rigidity to eliminate vibrations
2. Steel frame Q235 =American standard steel A306 GR55
3. Hydraulic fuel tanks and ironworker frame built by KINGDOM
4. Easy adjustable stroke control with ruler
5. Moveable working light
6. Hydraulic system with overload protection system
7. Emergency safety stop switch


Precautions

a,Prohibit the use of forklift loading and unloading machine.
b,Please keep large slope Angle while Lifting and transporting machines ,in order to prevent the deformation of the machine.
c,Machine color is optional,we can spay different colors for machine according to customers request.
d,Before using the machine,please check and fill full clean and high quality hydraulic oil, to avoid the noise and fault causing by lack of hydraulic oil when the machine is running.
e,How to choose qualified products in Chinese market? Be caution of some suppliers use high configuration pictures but quote low configuration price. The real product's detail,configuration and appearance dismatch the quotation at all.

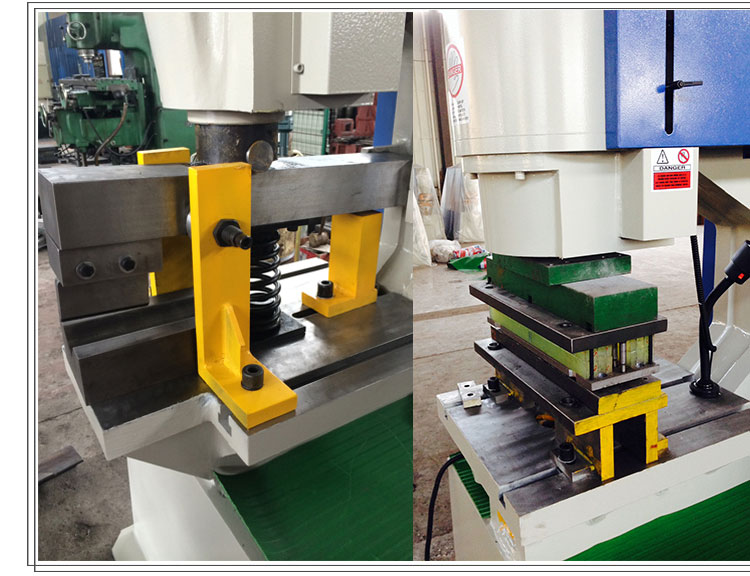

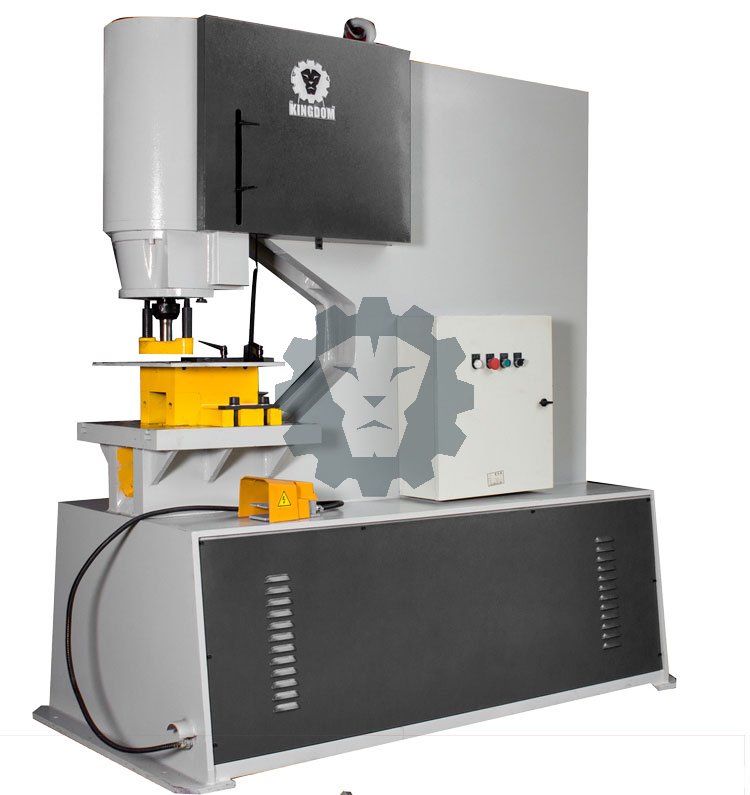

Product Display



Main standard properties components of Ironworker

1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Punching machine steel frame Q235 = American standard steel A306 GR55.
5. Timer relay by Japanese OMRON.
6. All wiring terminal block by WEIDMULLER.
7. Main electrical component by France Schneider.
8. Oil seals by Japanese, NOK.
9. O-Ring and valve by Taiwan for piston pump more durable.
10. Hydraulic System by Japanese Yuken.
11. Motor by Chinese Jiangsu WEITELI
12. Easy adjustable stroke control with ruler
13. Hydraulic system with overload protection system
14. Emergency safety stop switch

Advantage

1.OEM
Customize color and function
2.After sales
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
3.Good price
Reasonable price can meet your budget
4.Quality
Seal in the Cylinders from NOK, Japan;Electrical components from France Schneider;Valve from Germany Rexroth; Pump from Japan Sumitomo.Our product quality guarantee period is 13 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price.
We also can offer flexible extended warranties according to the actual situation.

Trade Information


FAQ

Why Choose Us?
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.

How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.

 How to maintenance the machine?
 Every shift has to fill in lubrication oil and machine oil.
